Oil Temperature Control Units

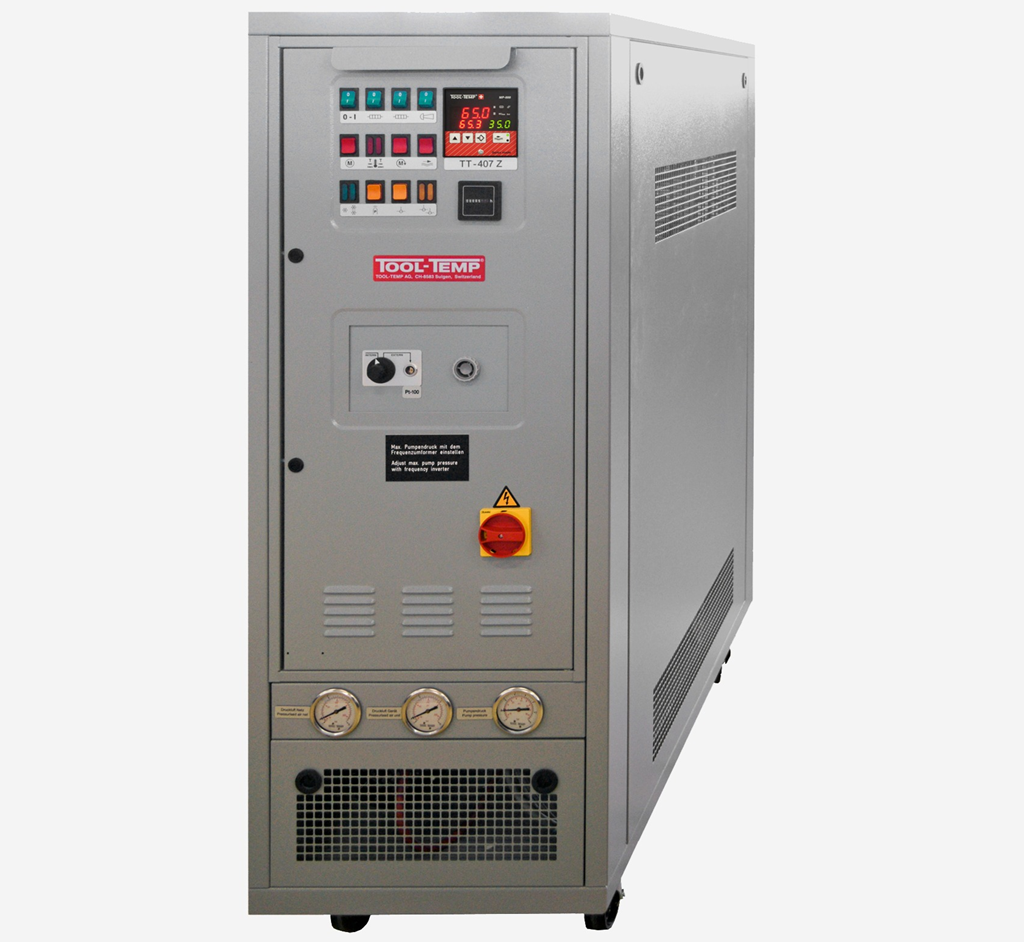

TT-407 Z
This 8kW heating and cooling unit is for use with temperatures between - 20°C to 240°C with a heat transfer liquid.
This 8kW heating and cooling unit is for use with temperatures between - 20°C to 240°C with a heat transfer liquid.
It is designed for use with double walled vessels and reactors and it has a two-circuit cooling system for operations below zero degrees.
• Self-optimizing temperature controller with digital display of the set and actual temperature. With high precision regulation in 1/10° range; can be adjusted to read °C or °F.
• Automatic temperature control – difference between set and actual temperature activates an alarm.
• Lime scale free heat exchanger.
• Digital flow indication with control of the minimum flow.
• All components in contact with water are made from corrosion resistant stainless steel.
• Heating with automatic cascade connection.
• Leak free high temperature pump with axial face.
The pressure is displayed by manometer.
• Hot oil circuit with by-pass, which ensures internal circulation if valves are closed.
• No oil cracking because of special construction of the heating elements.
SpecificationsTemperature range -20°C up to +240°C with a heat transfer liquid
Temperature control self-optimizing, electronic microprocessor controller MP-988 with digital display of the set and actual value.
Automatic temperature monitoring.
Flow control electronically, with digital display and automatic control of the minimum flow.
Heating capacity (Oil) 8 kW
Switchable in stages 3 / 5
Cooling capacity
Cooling 1 67 kW at 230°C
Cooling 2 143 kW at 80°C
Pump capacity motor 1,8 kW
Pressure mode max. 3,5 bar
Flow rate max. 55 l/min
Expansion tank capacity 21 litres
Filling amount 11 litres
Expansion volume 16 litres
Connections
Oil circuit ¾" BSP female thread
Cooling water ¾" BSP female thread
Water-glycol ¾" BSP female thread
Air pressure min. 5 bar
Dimensions (L x W x H) 1‘140 x 480 x 1‘400
Weight (empty) approx. 220 kg
Colour silvergrey RAL 7001
- Automatic level control for dry run protection.
- Electronic temperature limiter in the controller and separate mechanical safety thermostats.
- Main switch, transformer and motor protection switch.
- Horn in case of failure.
- All failures are visually indicated.
